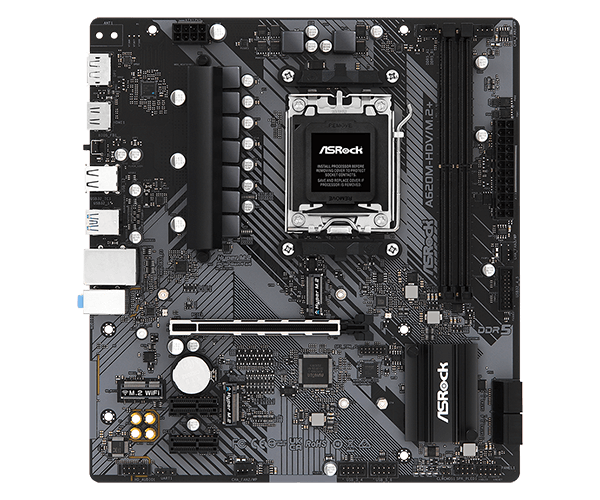

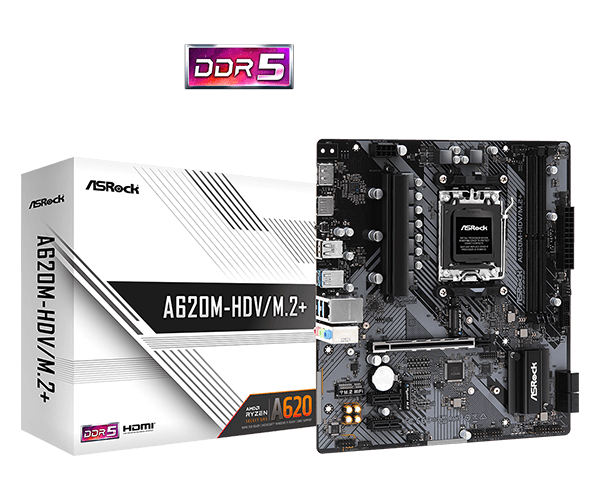

Carte mère A620M-HDV/M.2+
33.900 د.ج
About this item:
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 6+1+1 Power Phase Dr.MOS, Supports up to 120W CPU
- Supports DDR5 7200+ MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA™ 2 Graphics*
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
- 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
Unique Feature:
Superb Productivity
– Dual Channel DDR5
Rock-Solid Durability
– 6+1+1 Power Phase, 50A Dr.MOS for VCore
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– Dual Channel DDR5
Rock-Solid Durability
– 6+1+1 Power Phase, 50A Dr.MOS for VCore
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
CPU :
– Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset:
– AMD A620
Memory:
– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 96GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
– 2 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 96GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS:
– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics:
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio:
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
– Nahimic Audio
LAN:
– Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Realtek RTL8111H
Slots:
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
Storage:
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors
RAID:
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
*Requires additional M.2 NVMe expansion cards to support RAID 10
USB:
– 1 x USB 3.2 Gen1 Type-C (Rear)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
*All USB ports support ESD Protection
Connector:
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Power LED and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*CPU_FAN1 supports the fan power up to 1A (12W).
**CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
**CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O:
– 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI:
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories:
– 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
– 1 x I/O Shield
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
Form Factor:
– Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS:
– Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications:
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
– ErP/EuP ready (ErP/EuP ready power supply is required)
