SPECIFICATIONS
Model

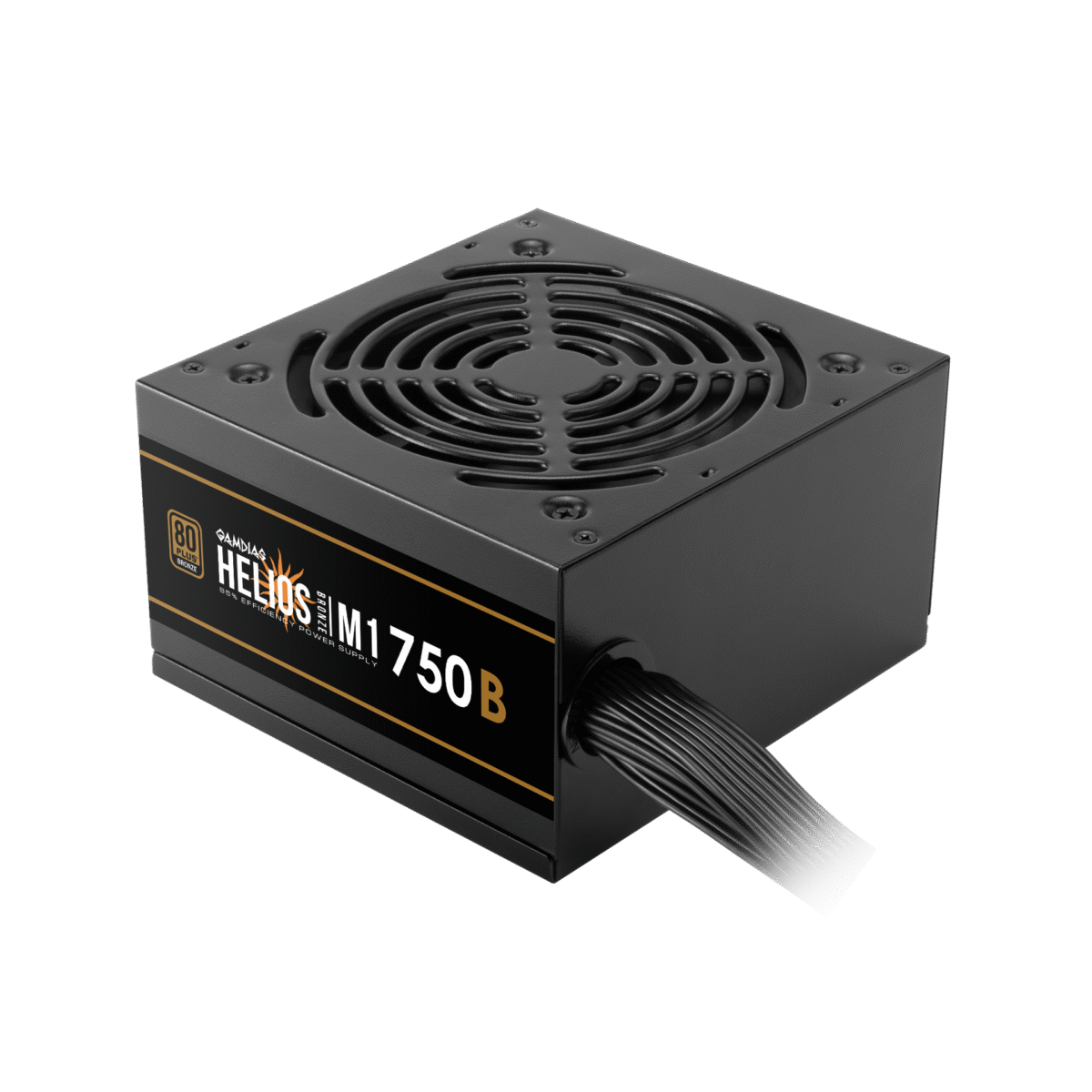

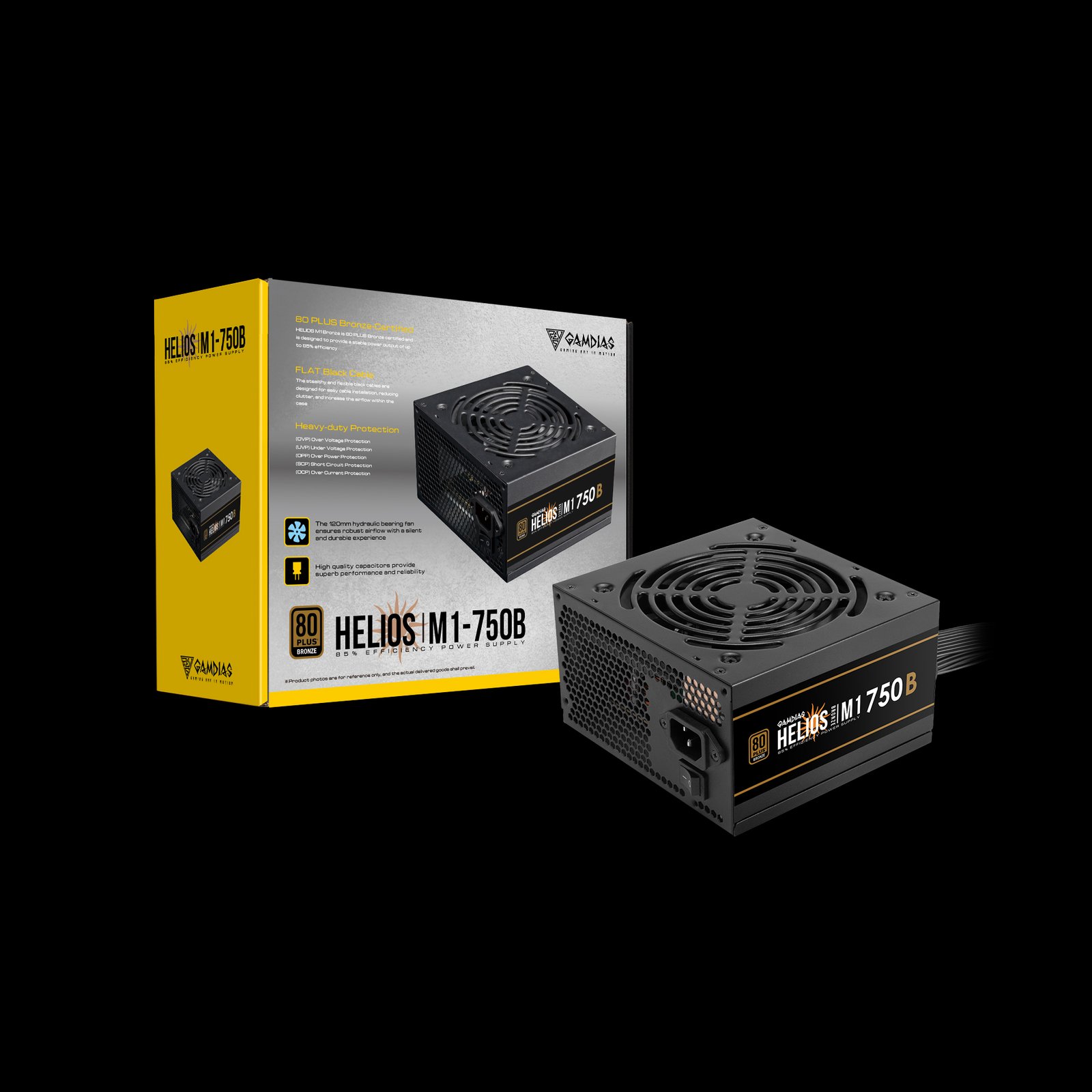

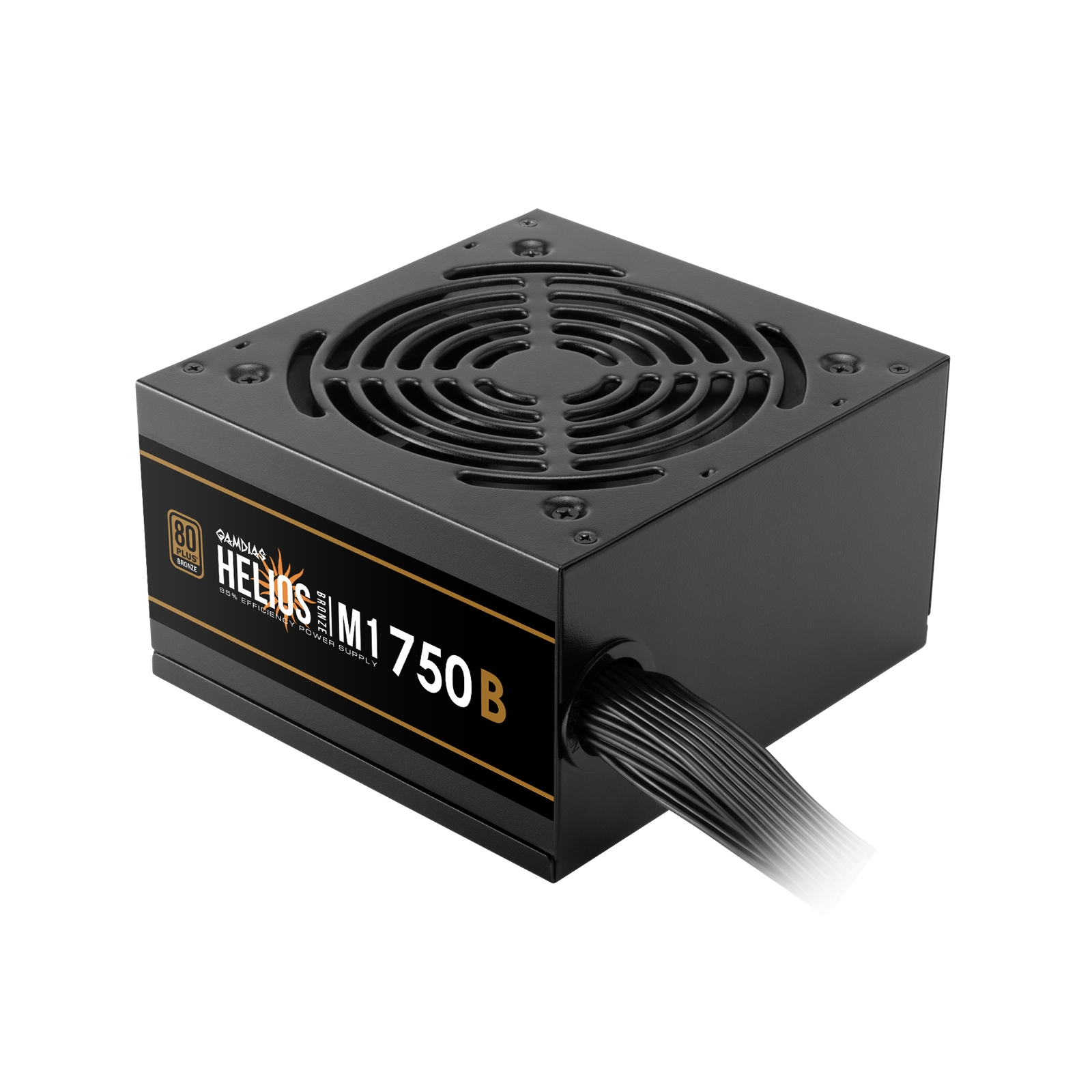

HELIOS M1-750B
POWER
TypeATX12V v2.4
EfficiencyMeet 80 PLUS Bronze efficiency
Power Factor CorrectionAPFC with PF value of 0.99
Support MB SyncNo
Dimension (L x W x H)140 x 150 x 86 mm
Support C6/C7 power stateYes
AC Input100-240V / 5.5-11A / 47-63Hz
DC Output+3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current18A / 18A / 56A / 0.4A / 2.5A
Max. Output Power100W / 672W / 4.8W / 12.5W
Total Power750W
ProtectionOVP / UVP / OPP / OCP / SCP
Main Power1 (20+4 Pin)
CPU1 (4+4 Pin)
PCI-E4 (6+2 Pin)
SATA5 (5 Pin)
Molex3 (4 Pin)
ModularNon Modular
Flat CableYes
Cooling System120mm hydraulic bearing fan
Silent ModeNo
