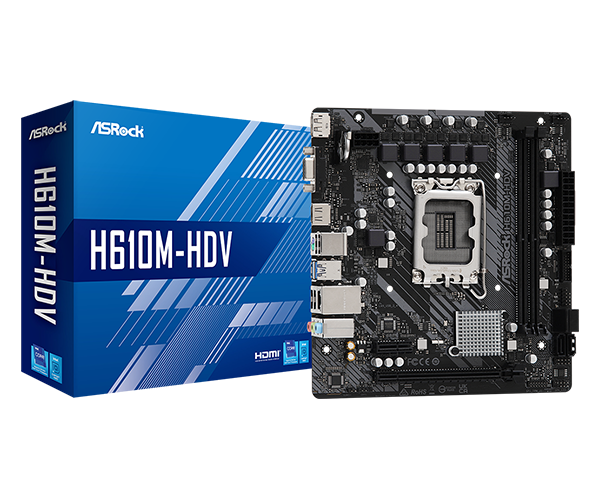

Motherboard Asrock H610m HDV DDR4

ASRock Super Alloy
– Premium Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

– Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
– 5 Power Phase design
– Supports Intel^® Hybrid Technology
– Supports Intel^® Turbo Boost Max 3.0 Technology

– Intel^® H610

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 3200
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports Intel^® Extreme Memory Profile (XMP) 2.0

– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

– Intel^® Xe Graphics Architecture (Gen 12)
– Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

– 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
– Supports Surge Protection

– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– 1 x Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE1)*

– 4 x SATA3 6.0 Gb/s Connectors

– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software
– ASRock Motherboard Utility (A-Tuning)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash

– I/O Shield
– 2 x SATA Data Cables

– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V

– Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
– Solid Capacitor design

– Microsoft Windows^® 10 64-bit / 11 64-bit

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
