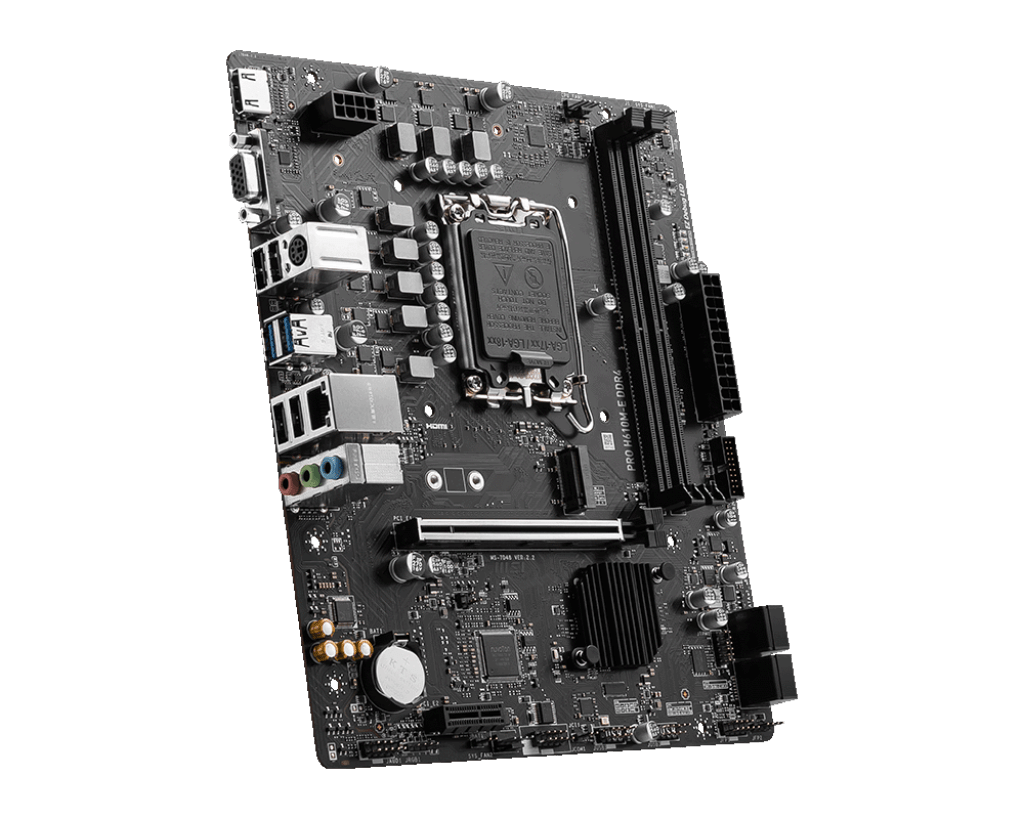

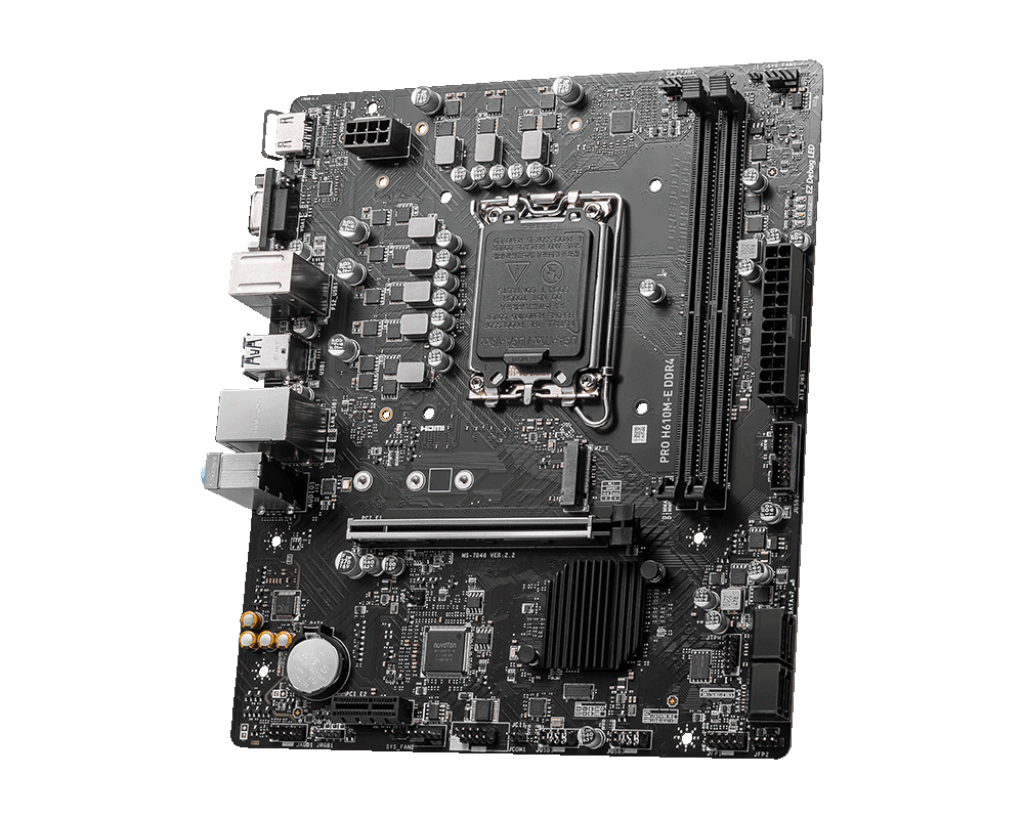

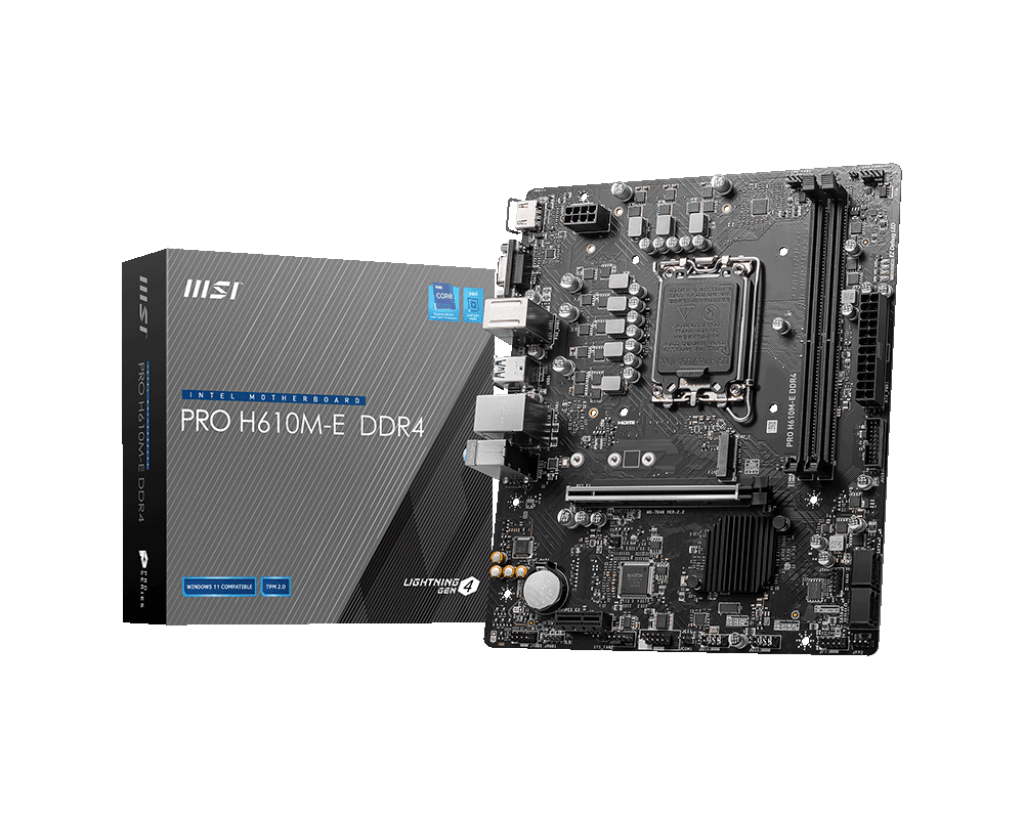

PROCESSOR : Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors, Processor socket, LGA1700
MEMORY: 2x DDR4 memory slots, support up to 64GB/ Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)/ Supports Dual-Channel mode/ Supports non-ECC, un-buffered memory
EXPANSION SLOT :1x PCIe x16 slot (From CPU)/ Supports up to PCIe 4.0 x16/ 1x PCIe x1 slot (From H610 chipset) / Supports PCIe 3.0 x1
ONBOARD GRAPHICS: 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz / 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz / available only on processors featuring integrated graphics./ Graphics specifications may vary depending on the CPU installed.
SATA PORTS: 4x SATA 6Gb/s ports (From H610 chipset)
M.2 SSD SLOT: 1x M.2 slot (Key M) (from CPU)/ Supports up to PCIe 3.0 x4/ Supports 2242/ 2260/ 2280 storage devices
AUDIO : Realtek ALC897 Codec: 7.1-Channel High Definition Audio
LAN: 1x Realtek RTL8111H 1Gbps LAN controller
POWER CONNECTORS: 1x 24-pin ATX main power connector/ 1x 8-pin +12V power connector
INTERNAL USB CONNECTORS: 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)/ Supports additional 2 USB 3.2 Gen 1 5Gbps ports/ 2x USB 2.0 Type-A connectors (From Hub-GL850G)/ Supports additional 4 USB 2.0 ports
FAN CONNECTORS: 1x 4-pin CPU fan connector/ 2x 4-pin system fan connectors
SYSTEM CONNECTORS: 1x Front panel audio connector/ 2x System panel connectors/ 1x Chassis Intrusion connector/ 1x TPM module connector/ 1x Serial port connector
JUMPERS: 1x Clear CMOS jumper
LED FEATURES: 1x 4-pin RGB LED connector/ 4x EZ Debug LED

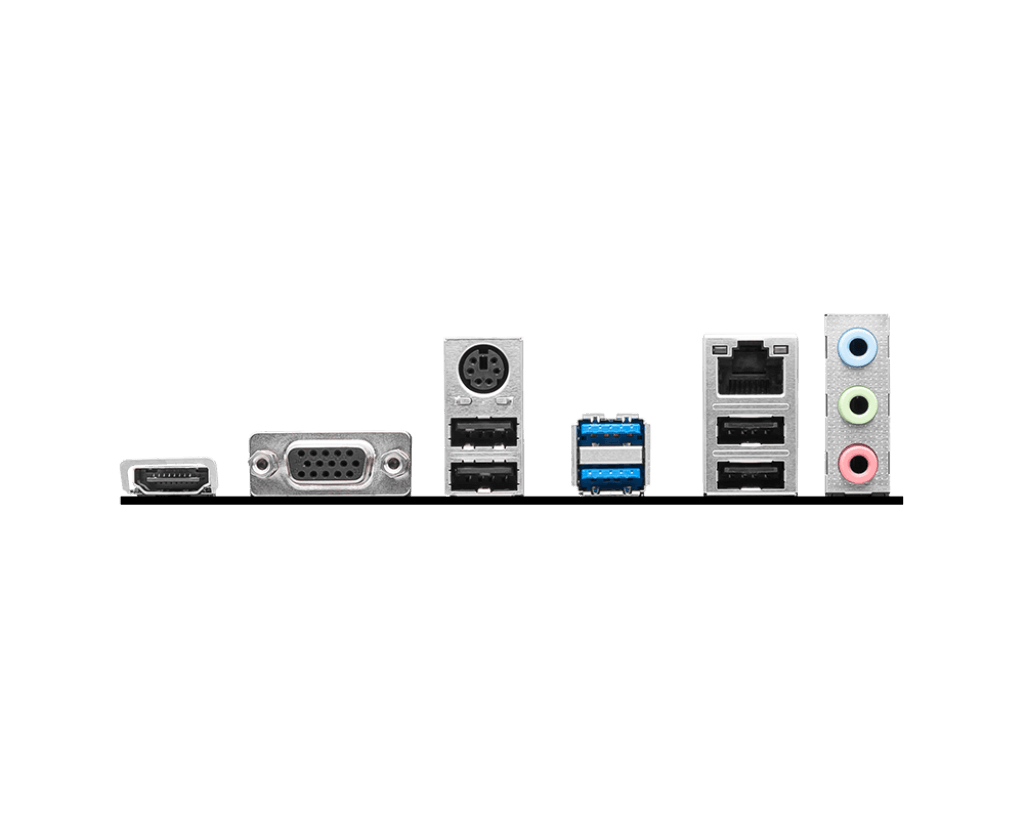

BACK PANEL PORTS : HDMI™/ VGA/ Keyboard / Mouse/ USB 3.2 Gen 1 5Gbps Type-A /LAN port/ Audio connector/ USB 2.0
DIMENSIONS: M-ATX Form Factor/ 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
